aluminum

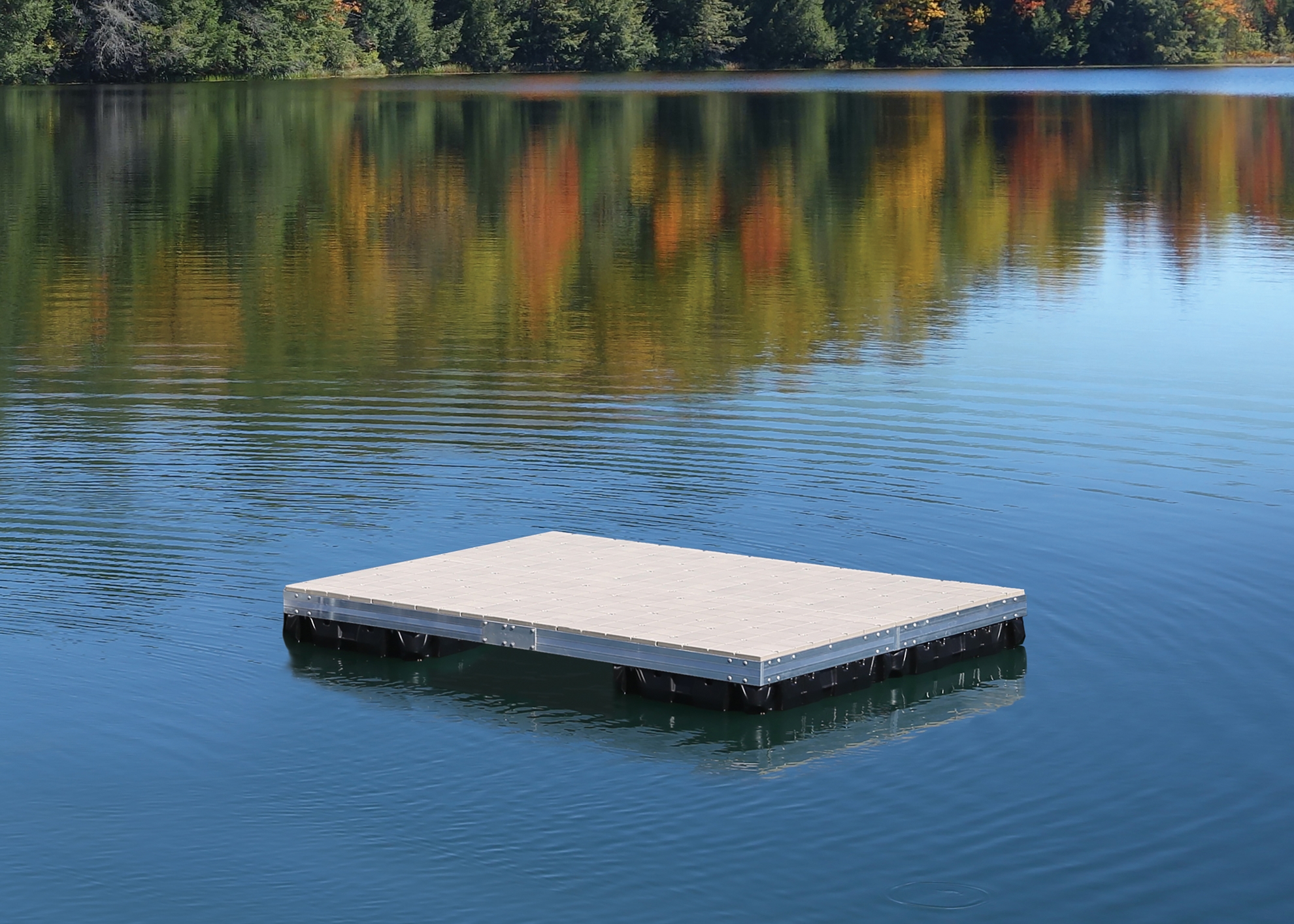

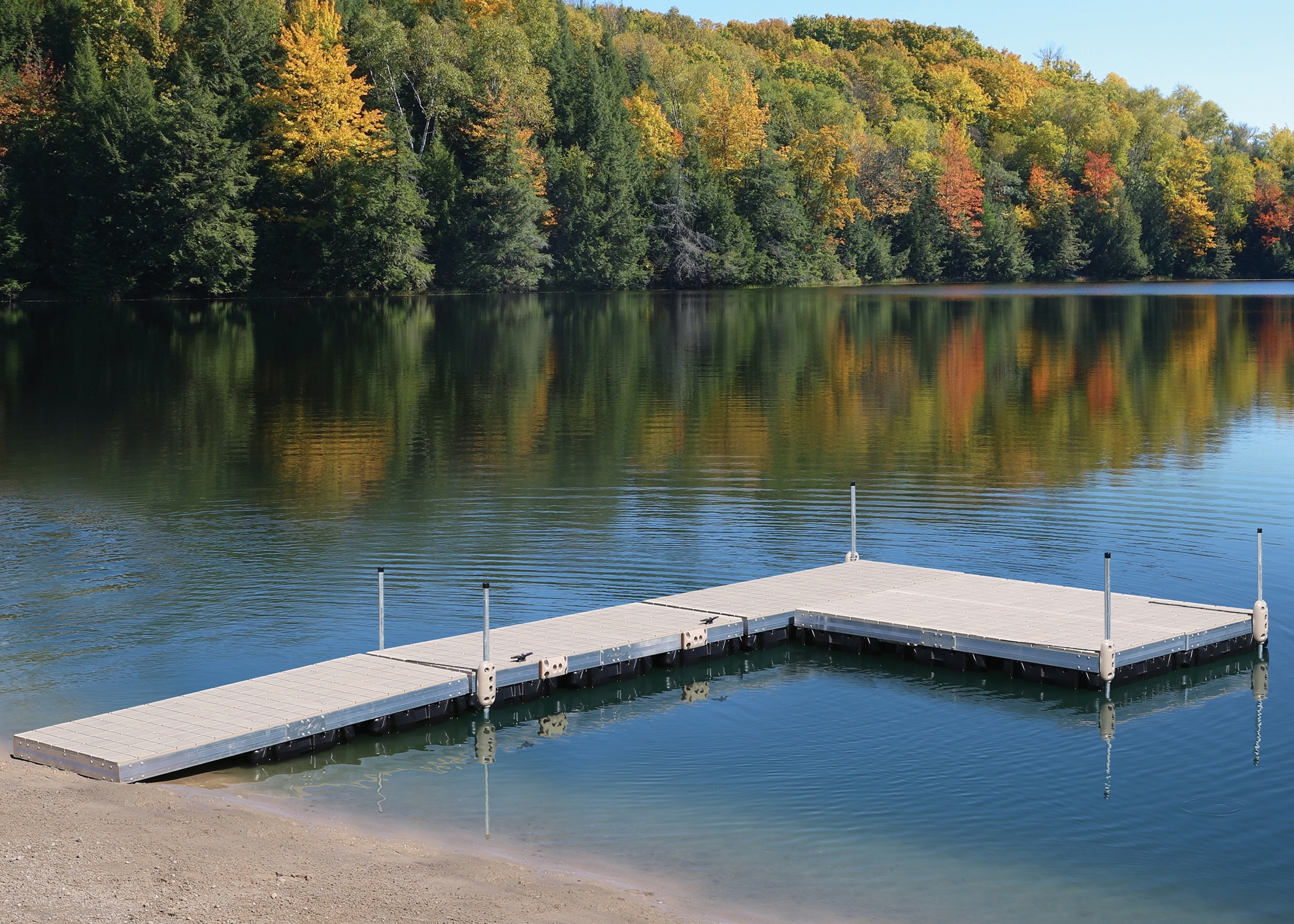

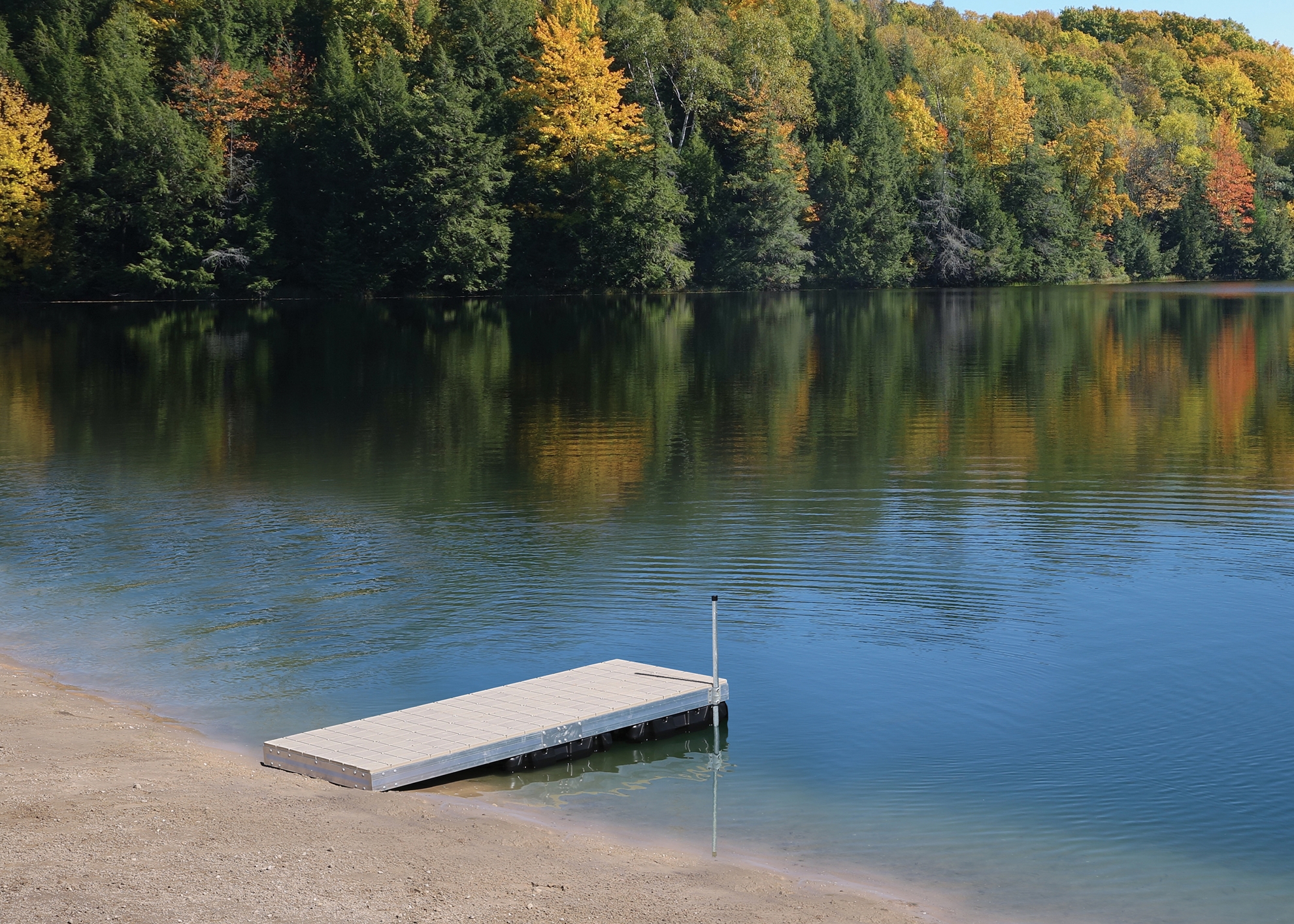

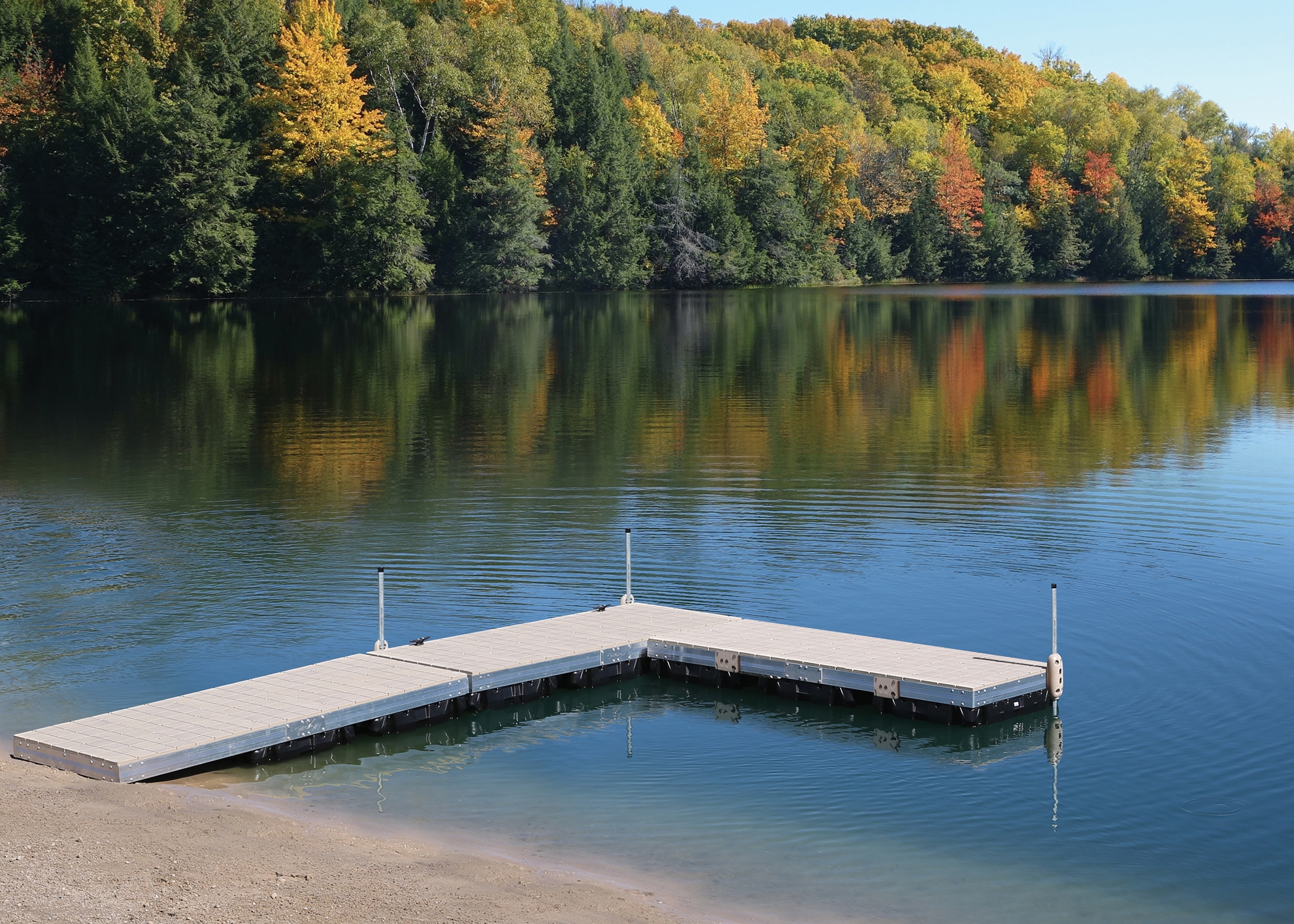

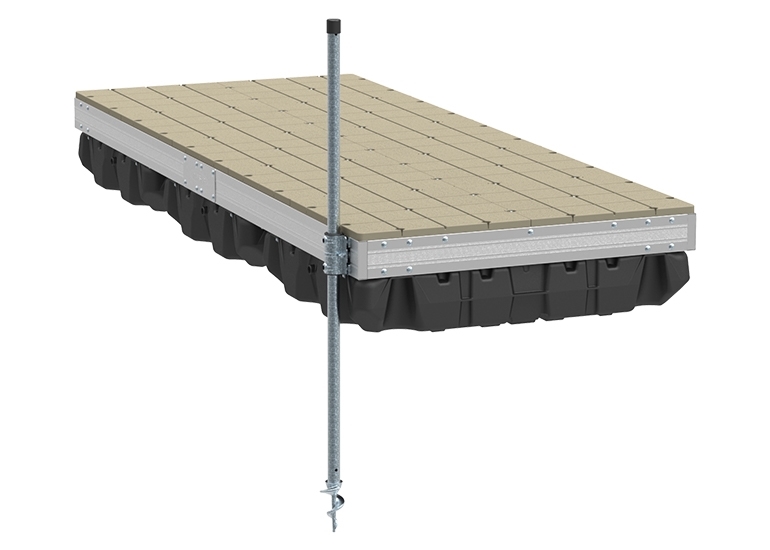

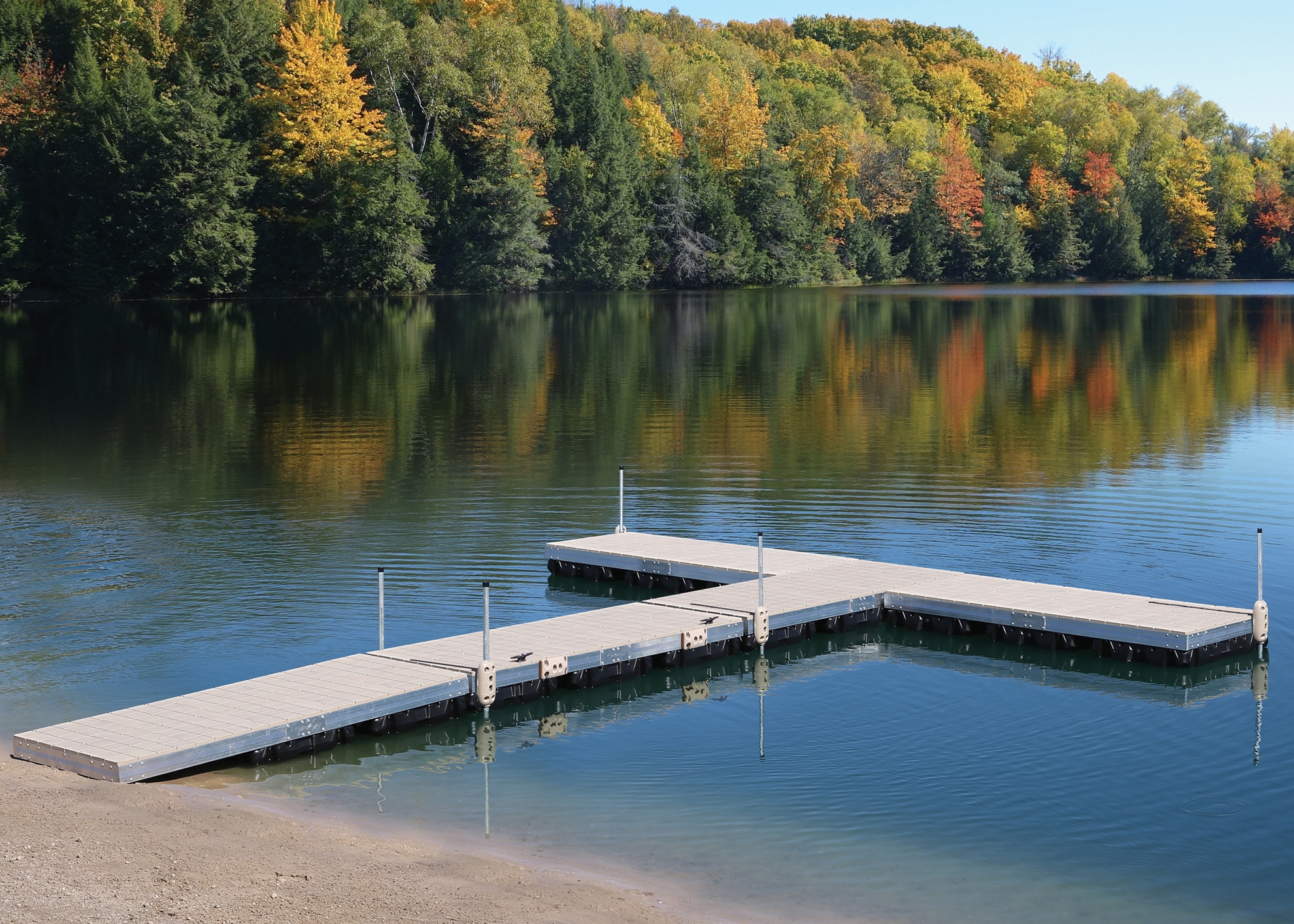

Aluminum Floating Dock w/ Resin Top


Strong, Lightweight, Tempered Aluminum Alloy Frame

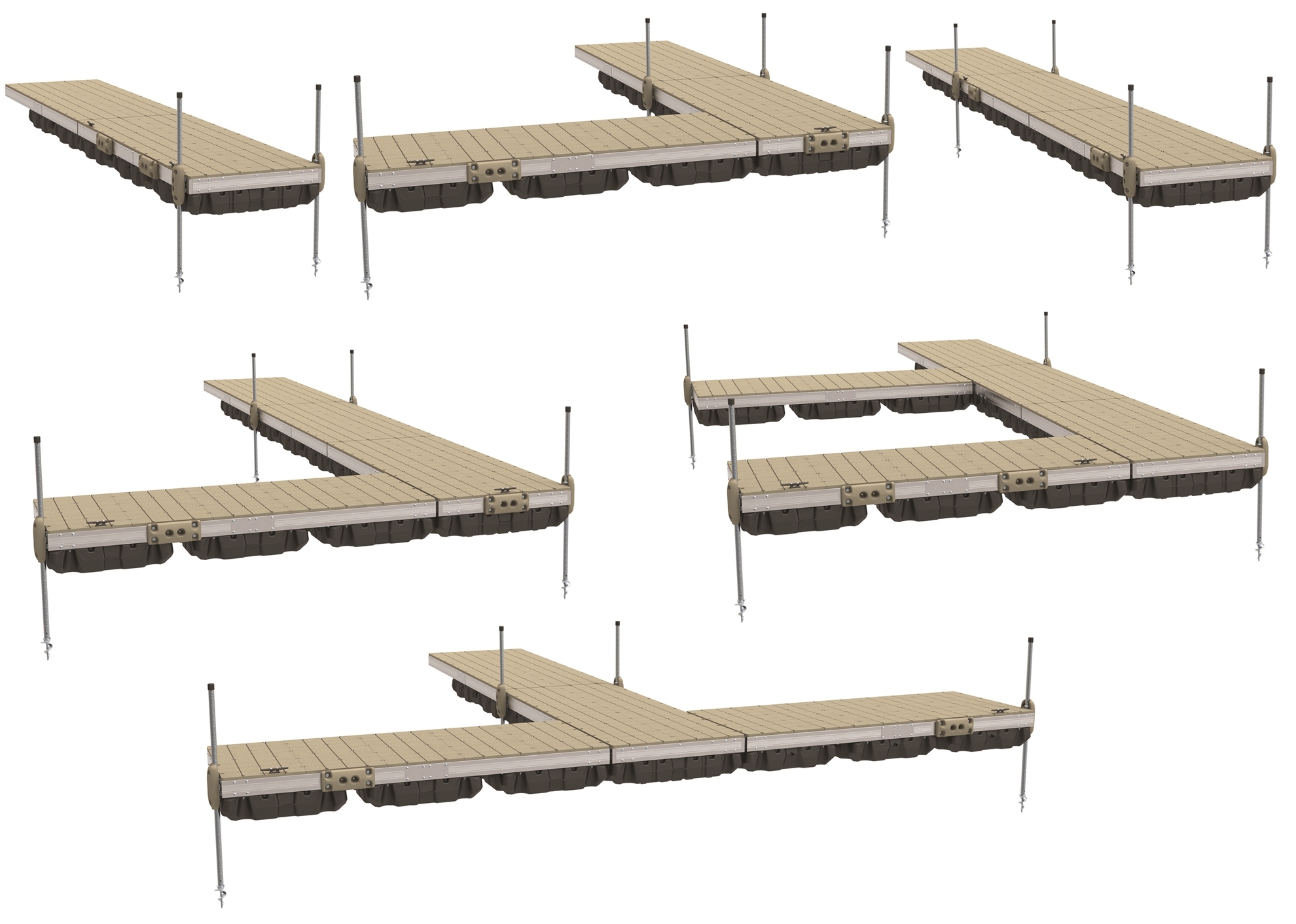

Floating Dock Self adjusts With Seasonal Changes In Water Levels.  Ideal For Mud, Deep Water And Difficult Access Areas.  Combine Multiple Sections for Unlimited Configurations.  Each Section Weighs Less than 200 Lbs.   15 Yr. Warranty

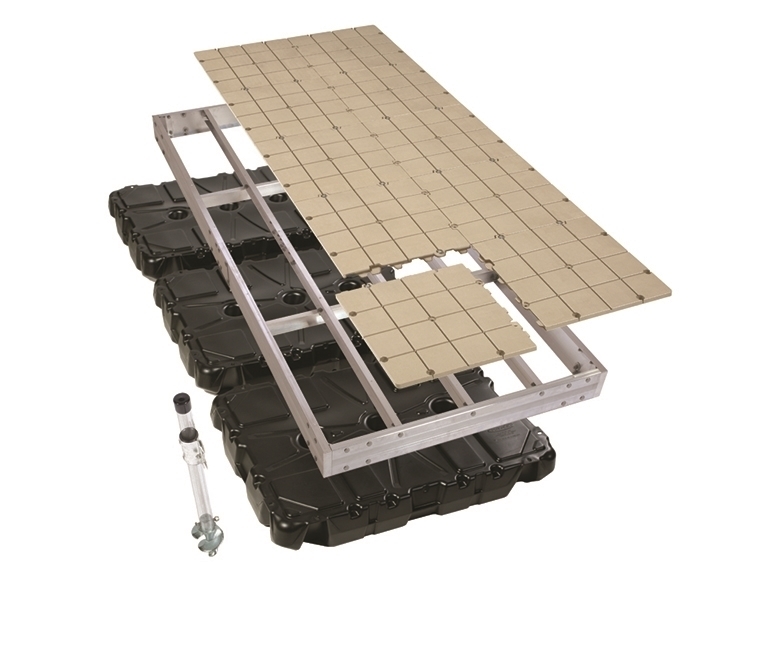

Aluminum Floating Dock Kit w/Resin Top - 4'x10' - Build It Yourself

PART#: KT 15053

Dock Pipe Purchased Separately from your local building materials retailer as length will be determined by your water depth.  Approximate Cost at your local building materials retailer $25.  All PlayStar Retailers will have a complete Price for this project and may vary from what is listed below.  QUANTITY DISCOUNT 2 or more for $1869 each.

$2069.00

Aluminum Floating Dock Kit w/Resin Top - 4'x10' - Pre-Built

PART#: PS 25053

Pre-Built docks are custom built and available in approximately two weeks. Pipe is Purchased Separately as length will be determined by your specific water depth. Some final light assembly may be required. If Added to Cart below freight is "curbside" delivery by contracted carriers. Product may be available from your local retailer and will ship directly to that location.

$2699.00
  • Tools & Materials
  • Reviews
  • 3D Tour
  • More Info & Plans
  • FAQs
  • Playstar Difference

Tools for Assembly

  • Safety Glasses
  • Gloves
  • Measuring Tape
  • Pencil
  • Saw Horses (Not Needed for Pre-Built)
  • 7/16", 3/8", 9/16" Socket & Ratchet
  • 7/16",3/8", 9/16" or Combination Wrench
  • Drill (May Not be Needed for Pre-Built)
  • 1/8", 1/4" & 3/8" Drill Bits (May Not be Needed for Pre-Built)
  • #2 Phillips Screwdriver (Not Needed for Pre-Built)
  • Carpenters Square (Not Needed for Pre-Built)
Current Rating:
| Write a review
Very nice.
Four Stars
Playstar's customer service was excellent,
I bought the package, rather then figure out individual parts. Hinges are included in the package are as 2 one piece pole holders and augers.
Playstar's customer service was excellent,
I bought the package, rather then figure out individual parts. Hinges are included in the package are as 2 one piece pole holders and augers.

Click & Drag to Complete your Tour

KT 15053 Aluminum Floating Dock Kit w/Resin Top

No specs available at this time.

Is the 200 lb weight without the decking?

The actual Dock Frame Weighs approximately 75 lbs. Each Section with Decking materials and the various support components to make a floating, roll in or stationary dock weigh less than 200 lbs collectively.  If you are using lumber as decking it simply attaches to the aluminum frame with multi-purpose self tapping screws.

Do the floats come with the fixings to mount them on a Playstar aluminum floating dock (model # 1505) or are they sold separately?

The Aluminum Dock Kit PS 1505 contains all the hardware necessary to mount the floats to the frame.

How do you attach the PS 1155 dock floats to the PS 1505 frame?

They are attached with 3/8" x 1 1/4" hex bolts included in the Aluminum frame kit.

How do you butt the 10' ends together to make a wider dock?

We have supplemental plans available that provide details on making wider dock sections with our frame kits.

Can you fasten 2 frames together length wise to make a large firm platform (8 x 10)?

Yes you can easily put 2 kits together to make an 8' x 10' section. Please call us at 1-888-PLAYSTAR (752-9782) and we will be more than happy to provide you with the instructions to accomplish this.

How do I add brackets for shoreline attachment and boat mooring?

The PS 1191 Dock Cleat and PS 1187 Torpedo Bumper are available to secure your boat to the dock. As far as the attachment to the shoreline there are a number of options we can assist you with. This depends on the make up of you shoreline. Please call us at 1-888-PLAYSTAR (752-9782) where you will be immediately greeted by a real live voice and we would be more than happy to assist you.

How much weight can the unit handle?

Each 4' x 10' Section has a weight rating of 1,500 lbs.

I would like to configure this in an 8' x 20'. Please help with component list and design

Please call us at 1-888-PLAYSTAR (752-9782) where you will be immediately greeted by a real live voice. This will allow us to completely understand your questions and provide you with the most accurate information. We look forward to speaking with you.

Do I need to remove my dock during the winter months?

Normal freezing and thawing will not damage a PlayStar Dock. However, docks are left in at owner’s discretion. No dock can withstand heavy ice movement.

You should consider the following factors:

    What has been the history of ice movement at your location?
    Do other dock owners in your area take their docks in or leave them out?
    Are there local restrictions or requirements?
    What kind of recreational activities take place around the dock during the winter?

Will this hold up in salt water?

We have only extensively tested our products in fresh water situations. Salt Water or "brackish" water will affect the hot dipped galvanized metal brackets and hardware.
According to the American Galvanizers Association, Galvanized coatings provide considerable protection to steel immersed in sea water and exposed to salt spray. The factors that influence the corrosion of zinc in fresh water also apply to sea water. However, it is the dissolved salts (primarily sulfides and chlorides) in sea water that are the principal determinants of the corrosion behavior of zinc immersed in sea water. Given the high level of chloride in sea water, a very high rate of zinc corrosion might be expected. However, the presence of magnesium and calcium ions in sea water has a strong inhibiting effect on zinc corrosion in this type of environment.

How do you attach the floating dock to a bank?

On a floating dock we recommend leaving a float off of the front of your first dock section so a portion of this section serves as a "gang" plank.   This will also allow it to properly function with the seasonal changes in water levels.   The pipes on the subsequent sections will anchor the dock and keep it in the same location on your shoreline.

Have a question of your own?

Please feel free to click below or call us at 1-888-PLAYSTAR (752-9782) where you will be greeted by a live voice.
